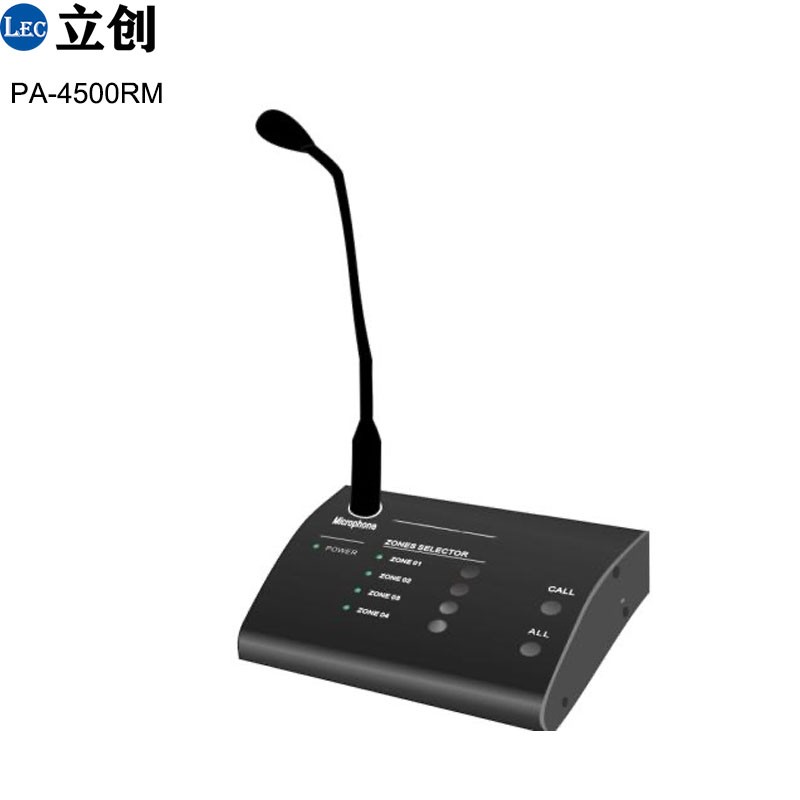

4 Zone Remote Microphone PA-4500RM

PA-4500RM is a remote paging microphone work with PA-4500 series amplifier, which is of 4 zone paging features,
its communication distance up to 200 meters through straight CAT6 cable, each amplifier capacity of connection up to
6 units of remote paging microphone, these microphone are connected hand-by hand. These 6 remote paging microphones could be pre-set different priorities by its dipswitch. The remote paging microphone is direct power
supplied by the amplifier.

Product Name: 4-Zone Remote Microphone (Model: PA-4500RM)

Product Content Attributes, Parameters & Features

Content Attributes	Parameters & Details	Functional Benefits
Product Name	4-Zone Remote Microphone (PA-4500RM)	Clearly defines the product’s zoning capability and model for easy identification.
Compatibility	Designed for use with PA-4500MX Series Amplifiers	Ensures seamless integration with existing PA systems.
Zone Capacity	4 independent broadcast zones	Enables targeted announcements in multiple areas (e.g., offices, warehouses).
Communication Interface	Direct connection via CAT6 cable	Stable signal transmission over 300 meters with minimal interference.
Power Supply	24V DC powered directly by the amplifier	Eliminates need for external power sources, simplifying installation.
Control Features	- 4 zone selection buttons - All-call (broadcast to all zones) - Priority presets	Flexible control for urgent or scheduled announcements.
Indicators	Power, Send, Busy status LEDs	Real-time monitoring of microphone activity and system health.
Chime Function	Pre-announcement chime tone	Alerts listeners before broadcasts for better message clarity.
Build Quality	Durable metal housing, industrial-grade components	Suitable for harsh environments (-20°C to +70°C operating temperature).
Audio Performance	- Frequency Response: 80Hz–16kHz - SNR: >70dB - THD: <1% @1kHz	Crystal-clear audio quality for professional paging and announcements.
Expandability	Supports cascading up to 4 microphones per amplifier	Scalable for larger facilities requiring multi-point paging.

Remote Microphone
4-Zone Remote Microphone
PA-4500RM Microphone
Amplifier-Powered Microphone

4-Zone Remote Microphone for PA Systems
Industrial Paging Microphone with CAT6 Connectivity
300m Range Remote Microphone for Warehouses
Multi-Zone Broadcast Microphone with Priority Settings

Wired Paging Microphone
Zone-Selective Announcement System
PA Amplifier-Compatible Microphone
Priority Broadcast Microphone

Chime Alert Function
Durable Metal Housing Microphone
High SNR Audio Equipment
Cascading Microphone Systems

Product Description:

Introduction to the PA-4500RM 4-Zone Remote Microphone
The PA-4500RM 4-Zone Remote Microphone is a professional-grade paging solution engineered for facilities requiring reliable, multi-zone communication. Compatible with PA-4500MX series amplifiers, this microphone delivers crisp audio over 300 meters via CAT6 cable, making it ideal for schools, factories, hospitals, and large retail spaces.

Key Features & Technical Advantages

4-Zone Precision Control

Select individual zones (Zone 1–4) or activate All-Call for facility-wide broadcasts.
Pre-set priority levels ensure critical announcements override non-urgent messages.

Amplifier-Powered Simplicity

Direct 24V DC power from the amplifier eliminates external wiring, reducing installation costs.

Industrial Durability

Operates in extreme temperatures (-20°C to +70°C) with a rugged metal casing resistant to dust and impact.

Enhanced Audio Clarity

A wide frequency response (80Hz–16kHz) and >70dB SNR ensure intelligible announcements even in noisy environments.

User-Friendly Design

Illuminated buttons and LEDs simplify operation in low-light conditions.
The pre-announcement chime alerts listeners to upcoming messages.

Applications

Education: Campus-wide bell systems, emergency alerts.
Healthcare: Code announcements, patient coordination.
Industrial: Shift changes, safety protocols in warehouses.

Technical Specifications

Power Requirements: 24V DC (supplied by amplifier)
Compatibility: PA-4500MX amplifiers
Cable Type: CAT6 (included, 300m max)
Dimensions: 220mm x 150mm x 50mm
Weight: 1.2kg

Why Choose the PA-4500RM?

Scalability: Connect up to 4 microphones per amplifier for large-scale deployments.
Cost-Effective: No licensing fees or software required—hardware-only setup.
Compliance: Meets global EMC and safety standards (CE, RoHS).

Content Integration
The 4-Zone Remote Microphone PA-4500RM excels in environments demanding reliable, long-range paging systems. Its amplifier-powered design ensures uninterrupted operation, while 4-zone priority settings enhance emergency response efficiency. For facilities requiring industrial-grade microphones with CAT6 connectivity, the PA-4500RM offers unmatched durability and audio precision.

Support & Warranty

3-year limited warranty.
Free technical support for installation and troubleshooting.

Ordering Information
Contact us for bulk pricing or custom configurations. Pair with PA-4500MX amplifiers for a complete 4-zone paging system. www.lecaudio.com
