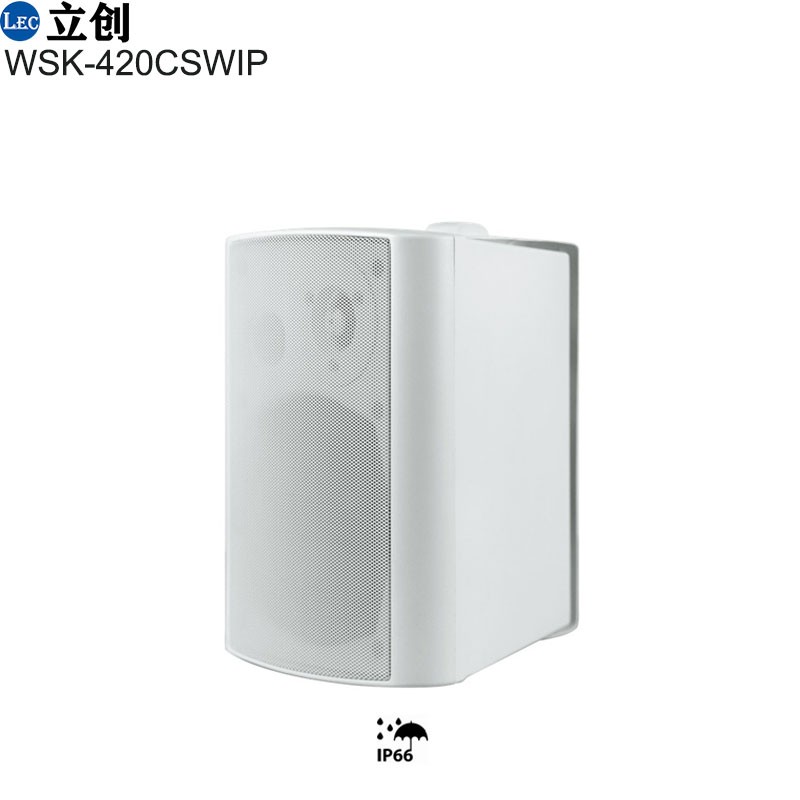

Outdoor Cabinet Speaker 4" Two Way 100V & 8 Ohm WSK-420CSWIP.
100V 70V Speakers, Waterproof Speaker, IP66 Waterproof, Fashion Speaker, Wall Mount Speaker.
WSK-420CSWIP is outdoor and waterproof IP66 4" 2-way wall mount speaker with 100V & 8 Ohm power tapping, 20W/10W/5W, ideal for outdoor music like park, zoo, garden and playground sound system.
High-Performance Outdoor Loudspeaker for Superior Audio Experience
Introducing our premium outdoor loudspeaker, engineered to deliver exceptional sound quality in various outdoor environments. This versatile speaker is ideal for background music (BGM) and paging systems in parks, gardens, playgrounds, and other open-air venues.
Product Specifications and Features
Attribute | Description |
---|---|
Model | WSK-420CSWIP |
Rated Power Output | 20W |
Power Taps | 20W / 10W / 5W / 2.5W & 8Ω |
Line Input | 100V or 70V & 8Ω |
Frequency Response | 100Hz – 20kHz |
Sensitivity (SPL @1W/m) | 88±3dB |
IP Rating | IP66 |
Speaker Unit | 4" weatherproof woofer and 1" mylar tweeter 2-way speaker system |
Material | ABS enclosure, aluminum grille, and stainless mounting bracket in white |

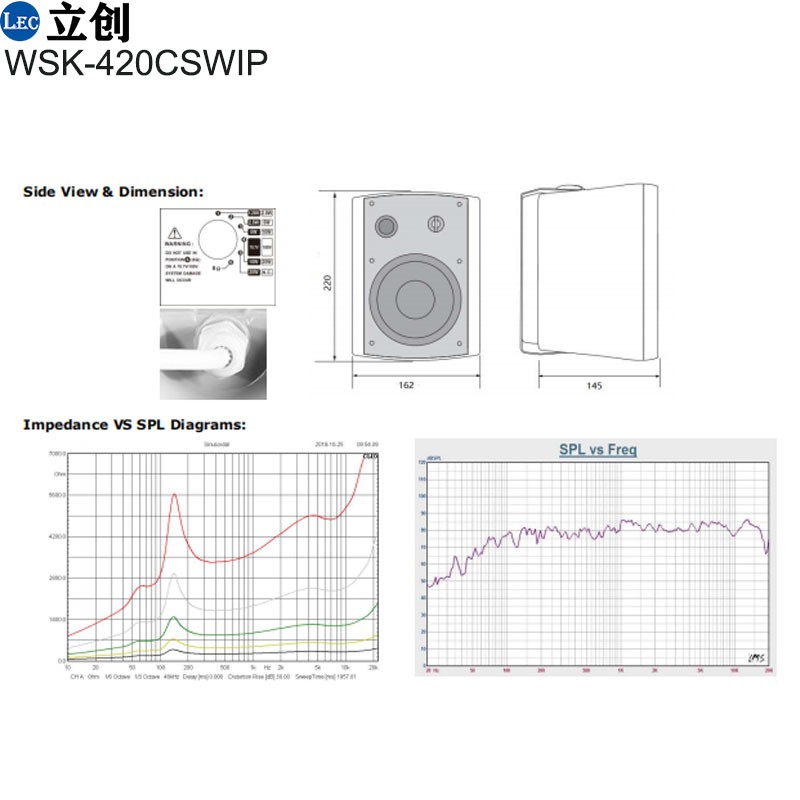

Dimensions | 220mm (H) x 162mm (W) x 145mm (D) |
Mounting Method | Quick installation using the supplied stainless mounting bracket |
Net Weight | 2.2kg |
Key Features and Benefits
Exceptional Sound Quality: Equipped with a 4" weatherproof woofer and a 1" mylar tweeter, this 2-way speaker system delivers clear and balanced audio, ensuring an immersive listening experience in outdoor settings.
Versatile Power Options: With multiple power taps (20W / 10W / 5W / 2.5W) and an 8Ω option, the speaker accommodates various installation requirements, providing flexibility for different audio system designs.
Robust Weatherproof Design: The ABS enclosure, aluminum grille, and stainless steel mounting bracket offer excellent durability and resistance to environmental factors. The IP66 rating ensures protection against dust and powerful water jets, making it suitable for all-weather applications.
Easy Installation: Designed for quick wall-mount installation, the speaker comes with a stainless steel mounting bracket that allows for secure and adjustable positioning, facilitating optimal sound distribution in any outdoor space.
Aesthetic Appeal: The sleek white finish and compact design enable seamless integration into various outdoor décors, enhancing the visual appeal of the installation area.
Applications
This outdoor loudspeaker is ideal for a variety of applications, including:
Parks and Recreational Areas: Providing high-quality background music and clear announcements to enhance visitor experience.
Gardens and Patios: Delivering ambient sound for relaxation and entertainment in residential or commercial outdoor spaces.
Playgrounds and Sports Facilities: Ensuring effective communication and background music to create an engaging environment.
Public Squares and Open-Air Venues: Facilitating public address systems for events, announcements, and background music.
Installation Guidelines
Mounting Location: Select a suitable wall or structure that allows for optimal sound coverage and is capable of supporting the speaker's weight. Ensure the location is free from obstructions and within reach of necessary wiring.
Bracket Installation: Use the supplied stainless steel mounting bracket to secure the speaker to the chosen surface. Follow the installation instructions to ensure a stable and secure mount, allowing for adjustable positioning as needed.
Wiring Connections: Connect the speaker to the audio source using appropriate cables. Ensure correct polarity and secure connections to maintain sound quality and system integrity. The waterproof cable gland protects the wiring, ensuring durability in outdoor conditions.
Testing and Adjustment: After installation, test the speaker to confirm proper operation. Adjust the positioning if necessary to achieve the desired sound coverage and ensure optimal performance.
Maintenance Tips
Regular Cleaning: Gently clean the speaker's exterior with a soft, damp cloth to remove dust and debris. Avoid using harsh chemicals that may damage the finish or compromise the weatherproofing.
Periodic Inspection: Check the mounting hardware and wiring connections periodically to ensure they remain secure and in good condition. Inspect the speaker for any signs of wear or damage, addressing any issues promptly to maintain performance and safety.
Environmental Considerations: While the speaker is designed for outdoor use, avoid exposing it to extreme conditions beyond its IP66 rating. Ensure proper drainage and avoid direct exposure to intense sunlight for prolonged periods to prolong its lifespan.
Optimized Title and Description
Title: High-Performance Outdoor Loudspeaker – 4" 2-Way Waterproof Speaker with 20W Power Output
Description: Discover our premium outdoor loudspeaker, featuring a 4" weatherproof woofer and 1" mylar tweeter for exceptional sound quality. With an IP66 rating and versatile power options (20W/10W/5W/2.5W & 8Ω), this 2-way wall-mount speaker is perfect for parks, gardens, and open-air venues. Easy installation and durable construction ensure reliable performance in all weather conditions.
Conclusion
Our outdoor loudspeaker combines superior sound quality, robust construction, and aesthetic design, making it an excellent choice for various outdoor audio applications. Its weatherproof features, versatile power options, and ease of installation ensure it meets the demands of any environment requiring dependable and high-quality outdoor sound solutions.
