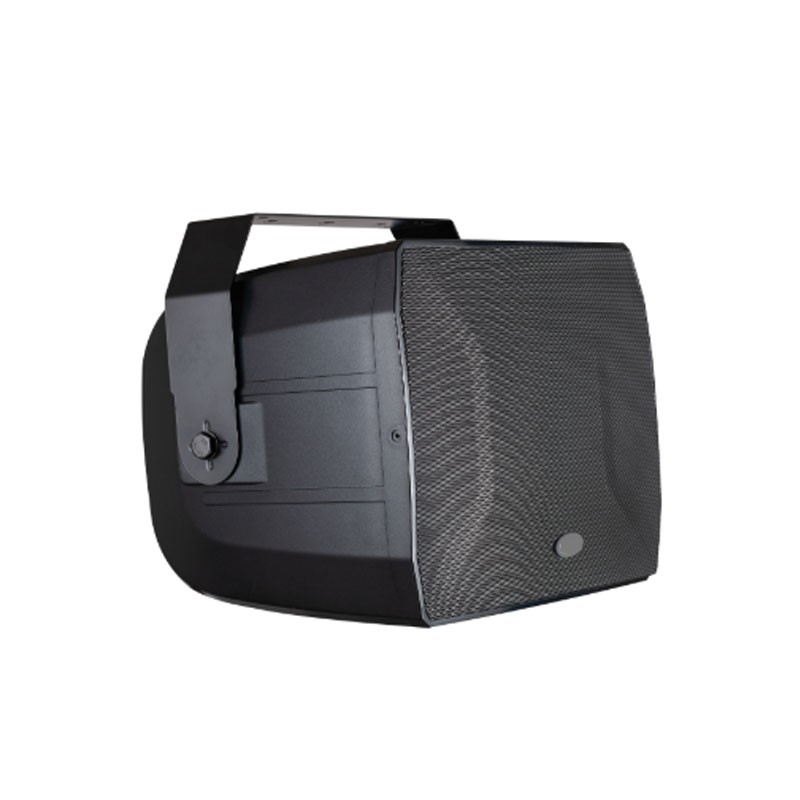

HSK-108TSEN: 8” Coaxial Horn Loudspeaker with EN54 Certification for All-Weather Applications

Product Details

The HSK-108TSEN 8” Coaxial Horn Loudspeaker is engineered to deliver exceptional audio performance in challenging outdoor conditions. With an IP66 rating, it ensures durability and reliability against harsh weather, making it perfect for a variety of applications including sports halls, football fields, playgrounds, parks, and outdoor live performances.

Key Features:

• Weatherproof Design: Constructed with a UV-protected ABS enclosure and an aluminum alloy grill, this horn loudspeaker is built to withstand the elements.

• Coaxial Technology: Incorporates a high-power 8” woofer and 3” tweeter for a full-range frequency response of 80-20KHz, ensuring clear voice reproduction and rich music quality.

• EN54-24 Certification: Complies with the stringent EN54-24 standard for emergency voice alarm systems, making it suitable for public address and voice evacuation systems.

• Transformer Options: Equipped with a 100V/70V transformer and 8Ω power tapping, offering RMS power outputs of 160W, 80W, 40W, and an 8Ω bypass.

• Wide Dispersion: Provides a broad dispersion angle of 180° horizontally and 90° vertically, ensuring comprehensive sound coverage.

• Robust Construction: Features a ceramic connector, 95℃ fire-resistant cable, and thermal fuse for added safety and longevity.

• Easy Installation: Includes a U-shaped wall mounting stainless bracket for quick and secure setup.

Specifications:

• Model: HSK-108TSEN

• Description: EN54-24 Fireproof 8” 2-Way Coaxial All Weather Horn Loudspeaker

• Power Output: 160W RMS and 300W Max.

• Impedance: 8 Ohms

• Power Tapping: 160W-80W-40W & 8Ω bypass

• Frequency Response: 80-20KHz

• SPL (@1W/m): 98dB and Max 108dB

• Speaker Unit: Waterproof 8” woofer + 3” tweeter

• IP Rate: IP66

• Dispersion Angle: Horizontal: 180°, Vertical: 90°

• Operation Temp: -22℃ to +55℃

• Dimension: 330x255x310mm

• Material: UV protected ABS enclosure with aluminum alloy grill in black, stainless bracket

• Weight: 9.5kg

The HSK-108TSEN is not just a horn loudspeaker; it's a reliable partner for all your outdoor audio needs, combining high performance with robust construction to deliver an unforgettable auditory experience.
