Remote speaker microphone EVAC-500FM

EVAC-500FM is emergency fireman microphone for PAVA or voice evacuation system of EVAC-500, it is used to auto-broadcast emergency pre-recorded message or emergency live annoucement in case of fire or emergency.

Introducing the EN54-16 Fireman's Microphone EVAC-500FM, a specialized emergency communication device designed to enhance the efficiency and reliability of public address and voice evacuation systems. This fireman's microphone is engineered to facilitate prompt and clear emergency announcements, ensuring safety and compliance in various environments.

Product Overview

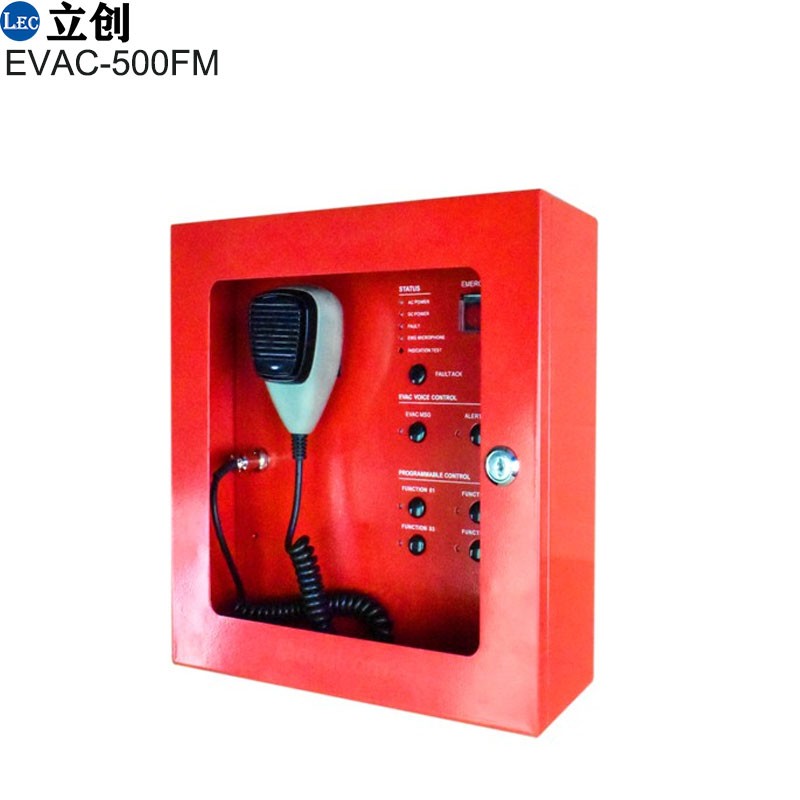

The EVAC-500FM is an EN54-16 certified fireman's microphone tailored for integration with the EVAC-500 public address and voice evacuation system. It serves as a remote control unit, enabling firemen and authorized personnel to broadcast pre-recorded emergency messages or deliver live announcements with priority during critical situations. The device is housed in a surface-mounted cabinet, providing durability and ease of access in emergency scenarios.

Key Features and Specifications

Feature	Description
Certification	EN54-16 certified, ensuring compliance with international safety standards for voice alarm control and indicating equipment.
Emergency Microphone	Equipped with a high-priority emergency microphone for live announcements during emergencies.
Visual Indicators	Features indicators for emergency state, fault status, AC/DC power, microphone status, and test functions, providing real-time system monitoring.
Programmable Buttons	Includes four programmable buttons along with EVAC and Alert functions, allowing customization for specific operational needs.
Pre-recorded Message Broadcast	Capable of remotely broadcasting pre-recorded messages to pre-assigned zones or all zones during emergencies.
Power Supply	Supports 24V DC phantom power supplied directly from the EVAC-500 controller, ensuring consistent operation.
Communication Distance	Supports communication distances up to 600 meters via shielded CAT6 cables with RJ45 connectors, facilitating flexible installation.
Loop Redundancy Connection	Utilizes loop redundancy connections to enhance system reliability and fault tolerance.

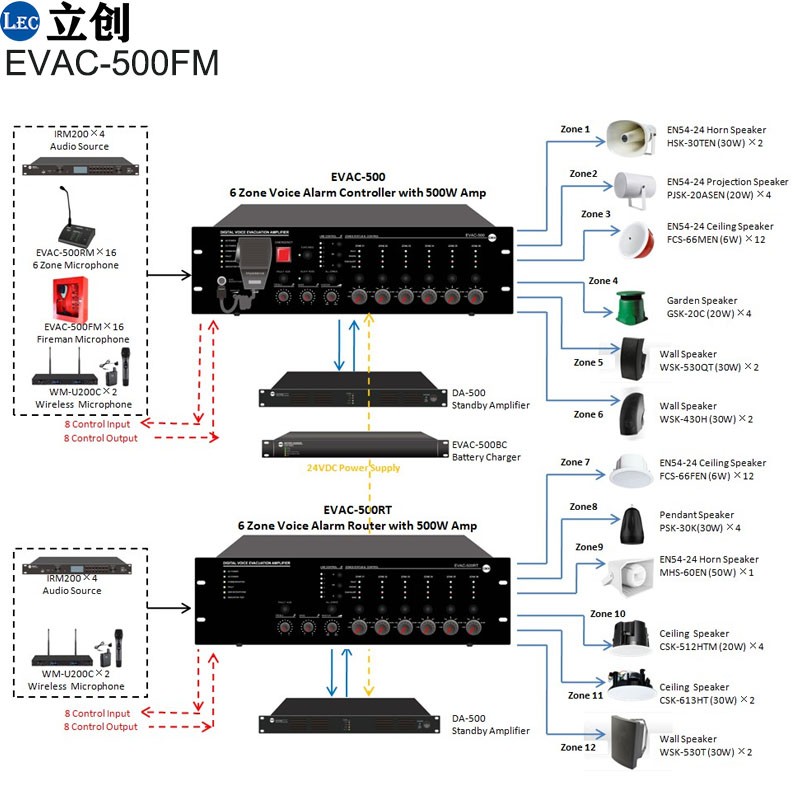

System Capacity	Supports up to 32 fireman's microphones within a single voice evacuation system, accommodating large-scale installations.
Access Control	Equipped with a lock and key mechanism to ensure access is restricted to authorized personnel only.
Real-time Monitoring	The microphone unit is fully monitored in real-time, ensuring operational integrity and immediate fault detection.
Emergency Activation	Features an emergency activation button for all-zone EVAC operations, enabling swift emergency response.
Installation	Designed for surface mounting, suitable for both indoor and outdoor applications.
Compliance	Adheres to Construction Products Regulation (EU) No 305/2011: EN54-16:2008 standards for voice alarm control and indicating equipment.

Functional Advantages

Immediate Emergency Response: The EVAC-500FM allows for rapid initiation of emergency states and broadcasting of alerts, ensuring timely communication during critical situations.
Priority Announcements: Live announcements made through the fireman's microphone are given the highest priority, ensuring that emergency messages override other communications.
System Monitoring: Real-time monitoring capabilities provide immediate feedback on system status, enabling quick identification and resolution of faults.
Customizable Operation: Programmable buttons and EVAC/Alert functions allow customization to meet specific operational requirements, enhancing flexibility.
Secure Access: The lock and key mechanism ensures that only authorized personnel can operate the microphone, maintaining system security.
Extended Coverage: With support for up to 32 units and communication distances up to 600 meters, the system can cover extensive areas, suitable for large facilities.

Applications

The EVAC-500FM is ideal for a variety of settings, including:

Commercial Buildings: Offices, shopping centers, and hotels requiring efficient emergency communication systems.
Educational Institutions: Schools and universities needing reliable systems for emergency alerts and evacuations.
Healthcare Facilities: Hospitals and clinics where timely communication is essential for patient and staff safety.
Industrial Complexes: Factories and warehouses that require robust systems to manage emergencies and ensure worker safety.

Conclusion

The EN54-16 Fireman's Microphone EVAC-500FM is an essential component for any public address and voice evacuation system, offering unparalleled functionality, reliability, and compliance with international safety standards. Its user-friendly design and robust features make it an indispensable tool for effective emergency communication in diverse environments, ensuring that critical messages are conveyed clearly and promptly to the intended recipients.
