Digital Audio Matrix Processor

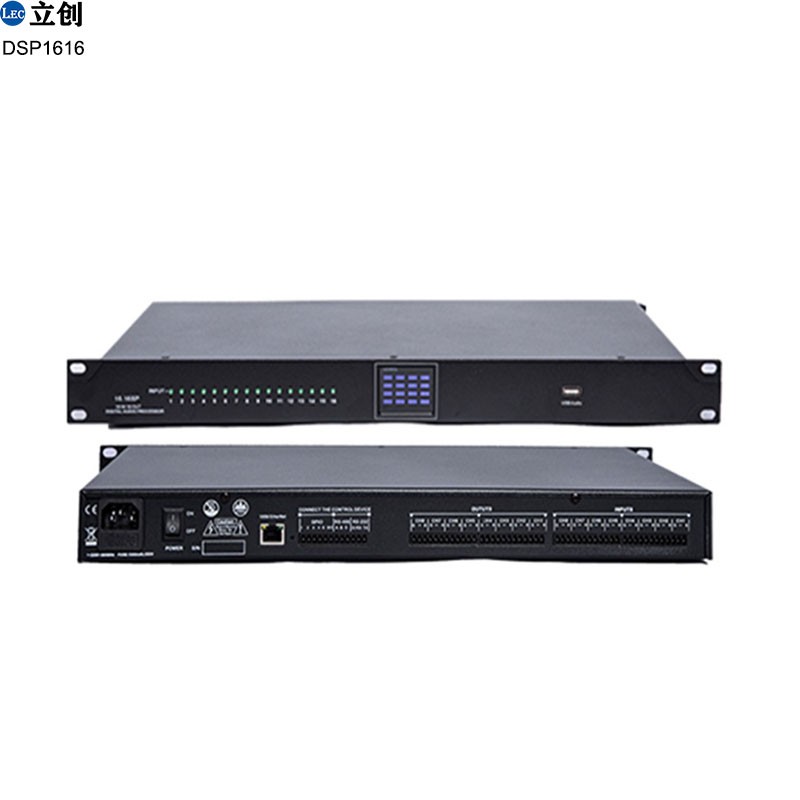

16 IN 16 OUT Digital Audio Matrix Processor DSP1616.

DSP Processor, Digtal Signal Processor.

DSP1616 is 16 inputs 16 outputs DSP digital signal processor with software to offer all in one high standard professional audio solution. The DSP processor with EQ, gain, crossover, limiter, delay, AFC, ANC etc.

Product Features

16x16 Channel Flexibility – Seamless routing and mixing for complex audio setups.
Integrated DSP Processing – Real-time EQ, compression, delay, and crossover filters.
Dante/AES67 Network Audio – Supports high-quality, low-latency audio over IP networks.
User-Friendly Control Software – Intuitive GUI for preset management and system monitoring.
Redundant Power Supply – Ensures uninterrupted operation in critical environments.

Product Description

This 16x16 digital audio matrix processor delivers professional-grade audio management for large-scale installations, including theaters, conference rooms, broadcast studios, and live venues. Equipped with robust DSP capabilities, it enables precise control over EQ, dynamics, and signal routing. Dante/AES67 compatibility allows seamless integration with networked audio systems, while the dual redundant power supply guarantees reliability. The browser-based control software simplifies configuration, making it ideal for integrators and audio engineers seeking scalability and performance.

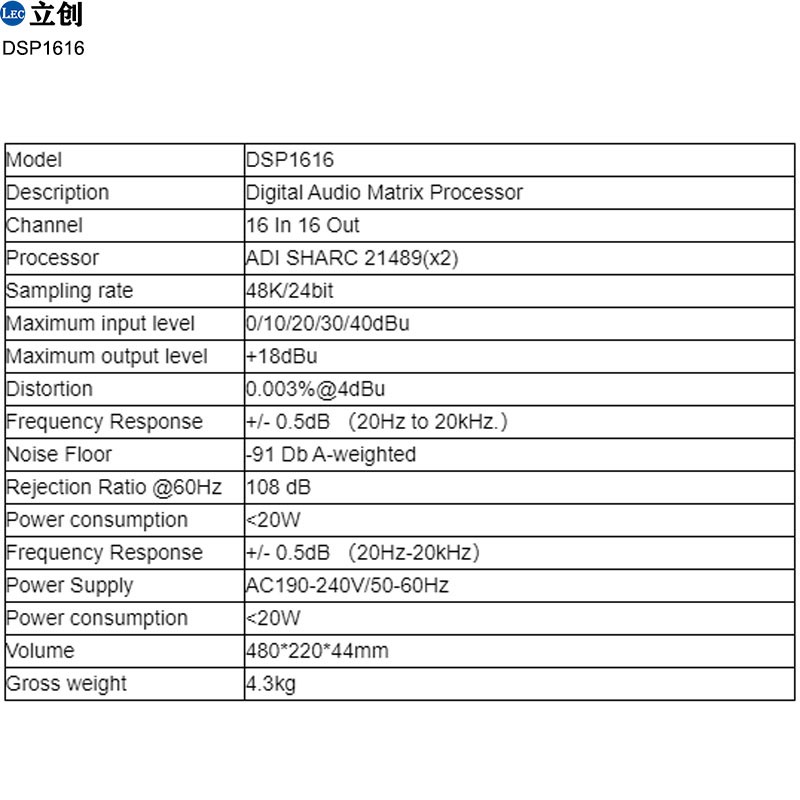

Specifications

Parameter	Details
Product name	DSP1616
Model	Digital Audio Matrix Processor
Input/Output Channels	16 analog XLR/TRS inputs, 16 outputs
DSP Processing	48 kHz/24-bit, <2ms latency
Network Protocols	Dante, AES67, AES3, analog/digital I/O
Frequency Response	20 Hz–20 kHz (±0.5 dB)
Power Supply	Dual redundant AC 100–240V, 50/60 Hz
Dimensions	19” rack-mountable (2U)
Control Interface	Ethernet, RS-232, GPIO
Software	Web-based GUI with macOS/Windows support

Competitive Advantages

Feature	Our Product	Competitors
Channel Capacity	16x16 expandable I/O	Typically 8x8 or 12x12
Latency	<2ms	Often >5ms
Control Interface	Browser-based cross-platform	Proprietary software only
Redundancy	Dual power supply	Single power unit
Network Compatibility	Dante + AES67 integrated	Limited to one protocol
